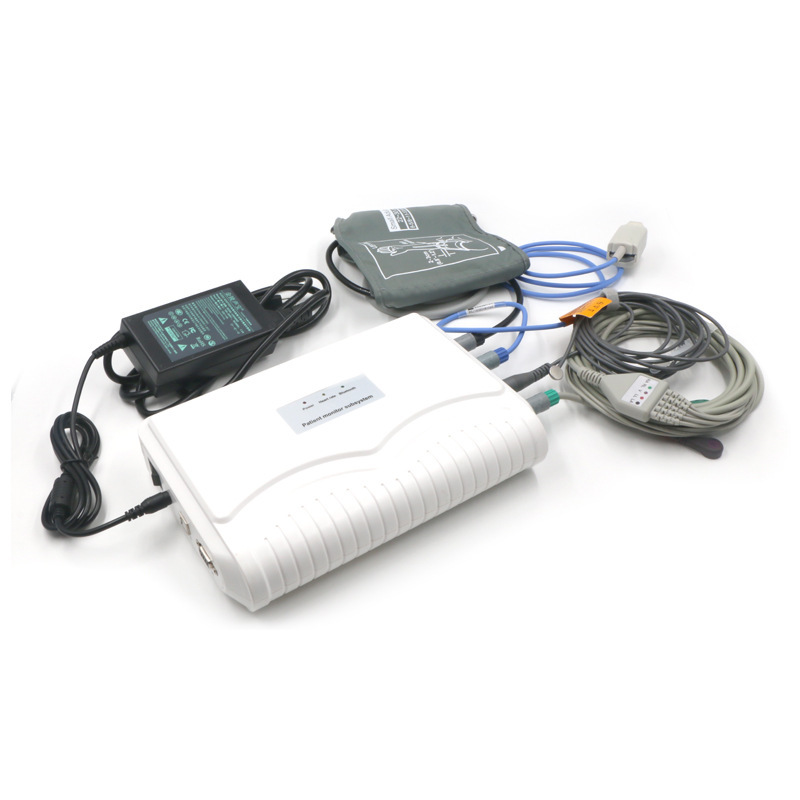

PM6750 Portable Patient Monitor System PCB OEM Module

Send Inquiry

Request To Call Back

PM6750 Portable Patient Monitor System PCB OEM Module

Get a Price/Quote

MOQ : 10 Pieces

PM6750 Portable Patient Monitor System PCB OEM Module Specification

Test
100% Electrical Test, AOI

Voltage Endurance
2500V AC for 60s

Min. Line Width
0.1 mm

Min. Line Spacing
0.1 mm

Soldermask
Green

Impedance
Controlled Impedance

Insulation Resistance
108

Board Type
Rigid

Hole Size
0.2 mm (min)

Flame Resistance Level
UL94V-0

Silkscreen
White

Product Type
Patient Monitor System PCB OEM Module

Base Material
FR4

Surface Finish
HASL Lead-Free

Copper Thickness
1 oz/ft2

Board Thickness
1.6 mm

Color
Green

Panel Size
Custom/Standard (as per OEM requirement)

Sensor Switch
Integrated

Electrical Components
SMD, Through-hole, ICs, Capacitors, Resistors

Number Of Layers
4 layers

Mounting Type
Panel Mount

PCB Size
Approx. 100mm x 100mm

Operating Temperature
-20C to +70C

Firmware Upgrade
Supported (via ISP/UART)

Power Supply
5V DC (typical)

Data Communication
UART/I2C/SPI/RS232 (optional)

Storage Temperature
-40C to +85C

Connector Type
Multiple medical-grade connectors

Signal Processing
Integrated A/D and D/A Conversion

Supported Parameters
ECG, SPO2, NIBP, Temperature, Respiration

PM6750 Portable Patient Monitor System PCB OEM Module Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

PM6750 Portable Patient Monitor System PCB OEM Module About

Buy Online the PM6750 Portable Patient Monitor System PCB OEM Module at an Unbeatable Price, directly from China's exclusive exporter, manufacturer, and supplier. Radiant in design, this first-rate module boasts advanced integrated signal processing (A/D & D/A conversion), supporting parameters like ECG, SPO2, NIBP, Temperature, and Respiration. With its enlightened architecture-multiple medical-grade connectors, robust 4-layer board structure, 100% electrical test, controlled impedance, UL94V-0 flame resistance, and firmware upgradeability-this PCB guarantees reliability and performance for demanding medical applications. Elevate your monitoring capabilities today!

Exceptional Features and Versatile Usage

The PM6750 Portable Patient Monitor System PCB OEM Module offers a range of other features, including integrated sensor switches and upgradeable firmware via ISP/UART. Designed for flexibility, it suits panel mounting and can be tailored for custom or standard panel sizes. Used as the core monitoring component in patient care equipment, this module combines surface-mount and through-hole components, ensuring a robust, first-class solution to meet diverse clinical and OEM requirements.

Certifications, Supply Ability, and Expedited Delivery

The PM6750 module meets strict international certifications, including 100% Electrical Testing, AOI, and is manufactured with high flame resistance (UL94V-0). Reliable supply ability is assured with prompt production capacity and strong domestic mar networks. Orders benefit from Quick Dispatch via our established transport services through your selected FOB Port. Count on us as your trusted supplier for timely, efficient order fulfillment anywhere you need.

FAQ's of PM6750 Portable Patient Monitor System PCB OEM Module:

Q: How can I upgrade the firmware on the PM6750 Patient Monitor PCB module?

A: The firmware of the PM6750 can be upgraded easily via ISP or UART, ensuring your system remains up to date with the latest enhancements and security features.

Q: What advantages does this PCB module offer for medical monitoring devices?

A: This module provides first-rate signal processing, controlled impedance, and multi-parameter support-all in a UL94V-0 flame-resistant, 4-layer design. It enhances reliability and safety, making it ideal for advanced patient care.

Q: Where is this PCB module manufactured and can it be delivered internationally?

A: The PM6750 is exclusively manufactured in China and exported globally, with efficient transport services and quick dispatch through various FOB ports for international shipments.

Q: What is the typical operating and storage temperature range of this module?

A: The module operates reliably within -20C to +70C, and can be safely stored at temperatures between -40C and +85C, ensuring durability under various conditions.

Q: What is involved in the ordering process for bulk or OEM requirements?

A: Simply contact our sales team with your specifications and quantities. We offer flexible panel sizes and can accommodate both standard and custom OEM needs with swift supply capability.
