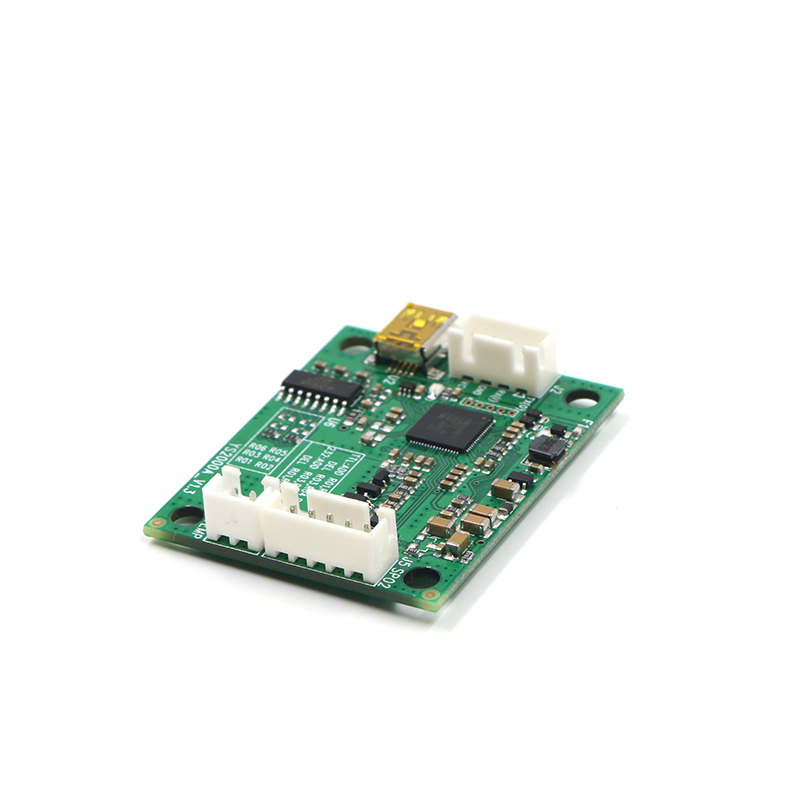

YS2000A SpO2 and Temperature PCB OEM Module

Send Inquiry

Request To Call Back

YS2000A SpO2 and Temperature PCB OEM Module

Get a Price/Quote

MOQ : 10 Pieces

YS2000A SpO2 and Temperature PCB OEM Module Specification

Board Type
Rigid PCB

Min. Line Spacing
0.15 mm

Min. Line Width
0.15 mm

Hole Size
0.3 mm

Soldermask
Green

Impedance
Controlled impedance for signal lines

Voltage Endurance
1500V AC/min

Test
100% Electrical Test

Silkscreen
White

Insulation Resistance
>10^12

Flame Resistance Level
UL 94 V-0

Product Type
SpO2 and Temperature PCB OEM Module

Base Material
FR4 Epoxy

Surface Finish
HASL (Lead-Free)

Copper Thickness
1 oz

Board Thickness
1.6 mm

Color
Green

Panel Size
50 x 40 mm

Sensor Switch
Integrated sensor interface for SpO2 and Temperature

Electrical Components
Microcontroller, connectors, resistors, capacitors, ICs

Number Of Layers
2

Measurement Range (Temperature)
10C - 50C

Operating Temperature
-10C to +50C

Sampling Rate
Measured typically at 100 Hz

Measurement Range (SpO2)
35% - 100%

Storage Temperature
-20C to +70C

Compliance
CE, RoHS Checked

Connector Type
JST connectors for sensor and power

Communication Interface
UART/TTL output

Operating Voltage
3.3V / 5V selectable

Accuracy (Temperature)
0.2C

Accuracy (SpO2)
2%

Power Consumption
Low Power (< 150 mW)

YS2000A SpO2 and Temperature PCB OEM Module Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

YS2000A SpO2 and Temperature PCB OEM Module About

Ending Soon: Secure the YS2000A SpO2 and Temperature PCB OEM Module at a Special Rate! Crafted with a world-class microcontroller, JST connectors, and UART/TTL interface, this immaculate green PCB is designed for accurate SpO2 and temperature measurement. It boasts low power consumption (<150 mW) and a swift 100 Hz sampling rate, along with 2% SpO2 and 0.2C temperature accuracy. With CE and RoHS compliance, flawless double-layer design, and HASL lead-free finish, it's an exquisite choice for medical and industrial integration. Grab Yours now-stock is limited!

Applications & Competitive Edge of the YS2000A Module

The YS2000A SpO2 and Temperature PCB OEM Module is ideal for healthcare devices, patient monitoring systems, and industrial applications. Its robust integration of an SpO2 and temperature sensor interface ensures precise vital monitoring. The module stands out due to its controlled impedance, high insulation resistance, CE/RoHS certification, and flexibility between 3.3V/5V operation-making it the ultimate solution for manufacturers prioritizing reliability, exquisite accuracy, and world-class performance in demanding environments.

Packaging, Delivery, and Market Availability

YS2000A modules are securely packaged for maximum protection during transit. With stock ready and goods supplied promptly, most orders are shipped within a reliable delivery period. We offer swift logistics for domestic distributors and direct shipments to manufacturing units. Our efficient supply system ensures modules reach customers quickly, supporting timely project deployment. The main domestic market spans mainland China, with export options available for international clients seeking immaculate PCB modules for medical and industrial integration.

FAQ's of YS2000A SpO2 and Temperature PCB OEM Module:

Q: How do I connect the YS2000A module to my existing device?

A: YS2000A modules come equipped with standard JST connectors for sensor and power interfaces, and feature UART/TTL output for seamless electronic integration with patient monitoring or industrial systems.

Q: What specific benefits does the YS2000A provide over other OEM modules?

A: The YS2000A offers controlled impedance, low power consumption, and world-class accuracy (2% SpO2, 0.2C temperature), meeting stringent CE and RoHS standards. Its robust design ensures longevity and reliable operation in diverse environments.

Q: Where are YS2000A modules primarily used?

A: These modules are highly valued in medical and industrial applications, particularly in devices requiring continuous patient monitoring, precision temperature measurement, and vital parameter tracking.

Q: What is the process for ordering bulk shipments and are goods always in stock?

A: Bulk orders can be placed directly with our supply team or authorized distributors. Stock is maintained ready to fulfill both small and large quantity orders, ensuring prompt shipment and delivery.

Q: When can I expect my order to be delivered after purchase?

A: YS2000A modules are typically shipped within a short, predefined timeframe once an order is placed. Delivery times vary based on location but our logistics network ensures swift distribution throughout domestic and select international markets.
