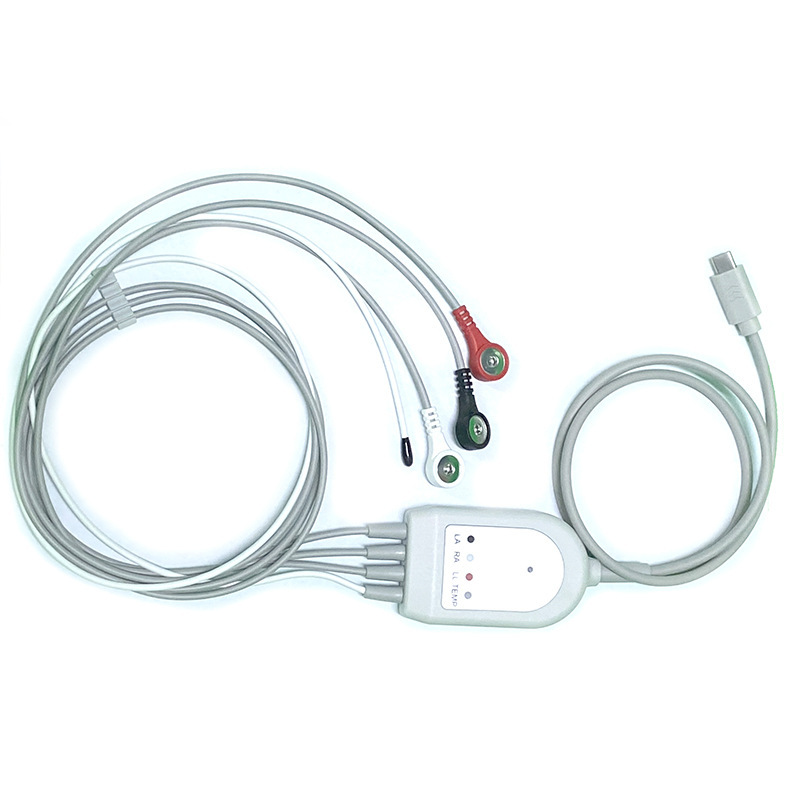

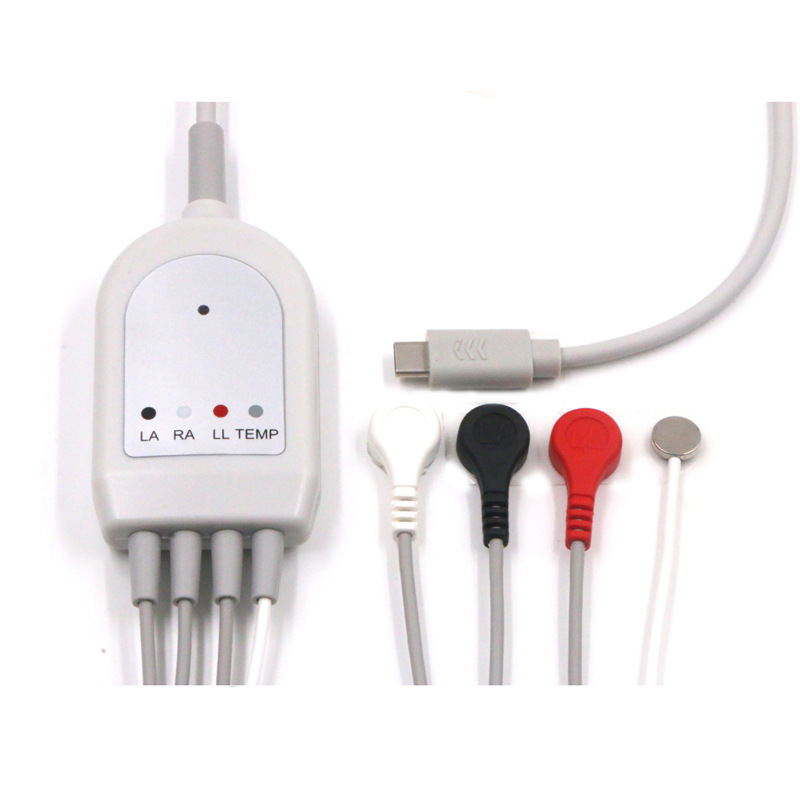

BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module

Send Inquiry

Request To Call Back

BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module

Get a Price/Quote

MOQ : 10 Pieces

BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module Specification

Impedance
Controlled, 10%

Insulation Resistance
>500 M

Min. Line Width
6 mil

Min. Line Spacing
6 mil

Flame Resistance Level
UL94-V0

Board Type
Rigid (OEM PCB for Medical Use)

Voltage Endurance
1500V AC for 1 minute

Hole Size
Min. 0.3 mm

Soldermask
Green

Silkscreen
White

Test
100% Electrical Test

Product Type
3 Wire Cardiac Holter Monitor PCB OEM Module

Base Material
FR4

Surface Finish
HASL (Hot Air Solder Leveling)

Copper Thickness
1 oz

Board Thickness
1.6 mm

Color
Green (PCB), Grey (Module Housing)

Panel Size
Custom/OEM

Sensor Switch
Included, compatible with standard ECG electrodes

Electrical Components
ECG signal amplification and filtering ICs, microcontroller, connectors

Number Of Layers
2 Layers

Electrode Compatibility
Standard snap or tab ECG electrodes

Application
Continuous ambulatory ECG monitoring

Operating Temperature
0C to 50C

Lead Wires Length
80 cm 5 cm

OEM Availability
Yes, customizable to requirement

Input Channels
3 (three-wire system)

Storage Temperature
-20C to 70C

Connector Type
USB

Humidity
10% to 95%, non-condensing

Noise Level
30 Vpp common mode

Recording Duration
24 to 72 hours (device dependent)

BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module About

The BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module is a towering example of engineering for continuous ambulatory ECG monitoring. This popular board features a grand, customizable design suited for device manufacturers and healthcare providers. Enjoy potent recording durations of 24 to 72 hours (device dependent), reliable USB connectivity, and exceptional compatibility with standard ECG electrodes. With robust flame resistance (UL94-V0) and an impressive 100% electrical test record, the module also includes a HASL finish and impressive insulation. Special markdowns available for OEM orders, making this a valuable choice for exporters and suppliers seeking quality.

Versatile Application Areas of BME03T Holter Monitor OEM Module

The BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module excels in continuous ambulatory ECG monitoring across clinical and diagnostic centers. Its compact yet rigid design allows application at various patient care sites, from hospitals to home-based monitoring. This module is suitable for both specific cardiac arrhythmia detection and general long-term ECG data collection, offering flexibility and adaptability. With integration-ready features, it accommodates diverse medical applications where accurate, uninterrupted heart rhythm monitoring is essential.

Domestic Market and Packaging for BME03T Holter Monitor Module

The BME03T OEM Module serves a broad domestic market, meeting the needs of healthcare providers, device manufacturers, and medical suppliers across China. Shipped goods are securely packaged to protect sensitive PCB components against transit damage. Sample policies are designed for convenience-enabling clients to request trial units before bulk dispatching. Quick shipment and efficient dispatch procedures ensure timely delivery, allowing customers to streamline their testing and device integration processes.

FAQ's of BME03T 3 Wire Cardiac Holter Monitor PCB OEM Module:

Q: How long can the BME03T Holter Monitor Module record ECG data?

A: The recording duration for the BME03T Holter Monitor Module ranges from 24 to 72 hours, depending on the specific device configuration and application requirements.

Q: What are the main application areas for this cardiac Holter monitor PCB?

A: This module is used primarily for continuous ambulatory ECG monitoring in hospitals, diagnostic centers, and home healthcare settings, supporting both short-term and extended cardiac arrhythmia assessments.

Q: Where can the BME03T PCB module be used?

A: The BME03T PCB module is suitable for integration into OEM cardiac monitoring devices used at clinics, hospitals, and for ambulatory patient monitoring at home or on the go.

Q: What customization options are available for OEM clients?

A: OEM clients can request panel size, housing color, lead length, and packaging customization, allowing for tailored integration according to their device or application specifications.

Q: How is the BME03T Holter Monitor Module shipped and packaged?

A: Shipped goods are carefully packaged to avoid damage during transportation, with shipment and dispatching coordinated to ensure prompt and secure delivery. Sample units are available through an accessible sample policy for evaluation before bulk orders.

Q: What are the benefits of using this Holter monitor module?

A: Users benefit from reliable, precise ECG monitoring, industry-standard compatibility with electrodes, strong insulation and flame-resistant features, and the flexibility to adapt the module for custom medical applications.
